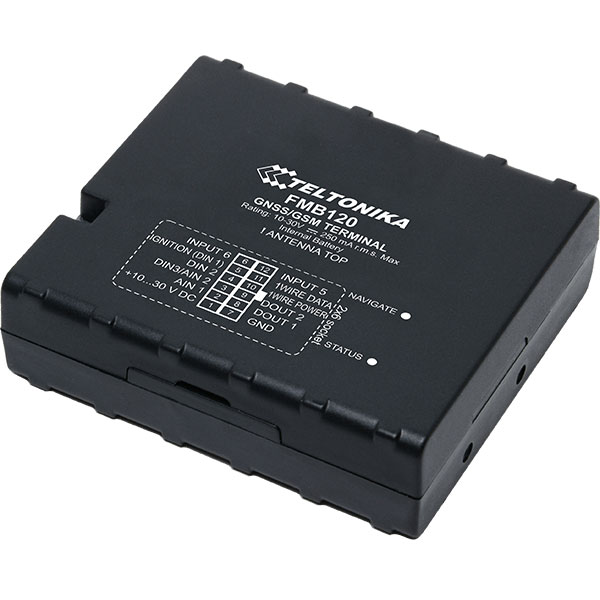

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

New generation GSM/GNSS module

With new integrated GSM/GNSS module, your tracking experience will be better than ever before. Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that your fleet will be tracked precisely.

Dual SIM

Dual SIM functionality is achieved by using together micro SIM card and embedded SIM. When the main SIM fails to connect, FMB1 will still stay online. Moreover, Dual SIM significantly reduces roaming costs, when using first SIM for Home network and second one for Roaming.

Bluetooth

Integrated Bluetooth enables wireless headset and various other Bluetooth devices connectivity. Make phone calls to your employee via Bluetooth headset. No unauthorized calls anymore! Be sure that your employee is always safe and uses hands free headset instead of phone!

Various vehicle CAN data

With additional Teltonika Vehicle CAN adapters you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport. Supported vehicles list contains more than 1800 models.

Internal battery

Feel safe when vehicle is monitored by device with internal battery. When vehicle battery is disconnected, device still remains online and sends data to server.

GSM:

• Quad-band 900/1800 MHz; 850/1900 MHz

• GPRS Multi-Slot Class 12 (up to 240 kbps)

• GPRS Mobile Station Class B

• SMS (text/data)

• Dual-SIM (1 x SIM card, 1 x eSIM)

Bluetooth:

• Bluetooth specification V3.0

• Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals:

  • Voice calls over Bluetooth

  • Configuration via Bluetooth

  • OBDII Bluetooth dongle

 GNSS:

• Tracking: 33/ 99 acquisition channels

• -165 dBM sensitivity

• Hot start <1s

• Warm Start < 25s

• Cold start < 35s

• NMEA-183 protocol

• GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

• Accuracy < 3m

INTERFACE:

• 2 Digital Inputs (1 reserved for Ignition Status Monitoring)

• 1 Analog Input (10V or 30V range)

• 1 configurable input DIN3 or AIN2

• 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)

• 1-Wire® (iButton® , RFID, temperature sensors)

• MicroSD

• Built in accelerometer

• Power supply (+10…+30) V DC

• Internal high gain GSM antenna

• Internal high gain GNSS antenna

• Dimensions: L(65mm) x W(56,6mm) x H(18,9mm)

• 2 Status LEDs

• Micro USB Port

• Integrated LiPo back-up battery
